Date Picker

The Date Picker provides a versatile interface for selecting dates, times, or both. It supports single date selection, date ranges, and multiple date selection with extensive customization options including custom formats, timezones, flow-based selection, and comprehensive styling controls.

Features

  • Multiple selection modes: single date, date range, or multiple dates
  • Flexible time modes: datetime, date-only, time-only, month, or year selection
  • Custom formatting: predefined formats or custom display patterns
  • Timezone support: locale-based or specific timezone handling
  • Flow-based selection: customizable step-by-step selection process
  • Range constraints: minimum/maximum range limits and auto-range options
  • Advanced date restrictions: allowed dates, disabled dates, and disabled weekdays
  • Multi-calendar views: side-by-side calendars for range selection
  • Extensive styling: comprehensive theme customization options

Getting Started

Using AI

The quickest way to set up a date picker is by using AI:

  1. Ask AI to add a date picker. Specify:
    • The selection mode you need (single, range, or multiple dates)
    • The time mode (date-only, datetime, time-only, etc.)
    • Any specific formatting requirements
    • Styling preferences

Example prompts:

  • "Add a date picker for selecting a single date with MM/DD/YYYY format"
  • "Create a date range picker for booking dates with a 7-day maximum range"
  • "Add a time-only picker with 24-hour format and seconds"
  1. The AI will create your configured date picker with appropriate styling

  2. Continue refining by asking for specific modifications:

    • "Change the date format to show full month names"
    • "Add timezone selection for UTC"
    • "Disable weekends from selection"

Manual Setup

  1. Add the Date Picker element from the Add panel
  2. Configure the selection mode:
    • Set Mode to Single, Range, or Multi dates
    • Choose the time mode (Datetime, Date, Time, Month, or Year)
  3. Set initial values if needed:
    • For single mode: set Init value
    • For range mode: set Init value start and Init value end
    • For multi-date mode: provide an array of dates
  4. Configure display options:
    • Choose a Format or create a custom format
    • Set language and locale preferences
  5. Apply styling through the comprehensive theme options

Selection Modes

The date picker supports three main selection modes, each with different use cases and behaviors.

Single Mode

Perfect for selecting one specific date or time:

  1. Set Mode to Single
  2. Optionally set an Init value using a formula like new Date() for today
  3. The component variable will contain a single date string

Init value in Single mode

Range Mode

Ideal for booking systems, date intervals, and period selection:

  1. Set Mode to Range
  2. Configure range behavior:
    • Free: users can select any date range
    • Auto: users select start date, range ends after specified days
    • Min Max: enforce minimum and maximum range lengths

Init value in Range mode

Example Min Max configuration for 2-7 night bookings:

Min max in Range mode

The component variable will contain an object with start and end properties:

Date range picker component variable

Multi Dates Mode

Useful for selecting multiple individual dates:

  1. Set Mode to Multi dates
  2. Optionally set Multi dates limit to restrict the number of selections
  3. Provide an array of initial dates if needed

Multi dates example

The component variable will be an array of date strings:

Multiple date picker component variable

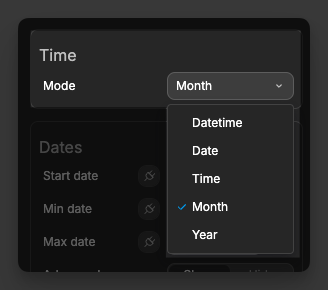

Time Modes

Control what type of date/time information users can select:

ModeVariable FormatUse Case
Datetime"2025-01-06T23:00:00.000Z"Full date and time selection
Date"2025-01-10"Date-only selection
Time"19:28:00"Time-only selection
Month"2025-01"Month and year selection
Year"2025"Year-only selection

Time-Specific Settings

For Datetime and Time modes:

  • 24h mode: Toggle between 12-hour and 24-hour time format
  • Enable seconds: Include seconds in time selection
  • Timezone: Choose locale-based or specific timezone handling

Display and Formatting

Language Support

Set the calendar language:

  • Select Page lang to use the current page language
  • Choose a specific language from available options

Date picker language

Date Format Options

Control how dates are displayed to users:

FormatExample Output
DD/MM/YYYY05/01/2025
MMMM D, YYYYJanuary 5, 2025
MMM D, YYYYJan 5, 2025
h:mm A2:30 PM
CustomYour custom format

Date display format

The component variable value remains unchanged regardless of display format.

Display Options

  • Menu position: Center, Left, or Right alignment
  • Calendar only: Show calendar without trigger button
  • Orientation: Horizontal or Vertical layout

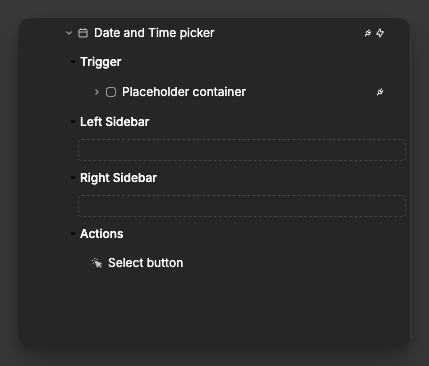

  • Left/Right sidebars: Add custom content areas

Date picker display styles

Advanced Configuration

Date Restrictions

Control which dates users can select:

  • Min date: Earliest selectable date
  • Max date: Latest selectable date
  • Start date: Initial calendar view date
  • Allowed dates: Whitelist specific dates only
  • Disabled dates: Blacklist specific dates
  • Disabled week days: Disable specific weekdays (0=Sunday, 1=Monday, etc.)

Dynamically disabled week days

Disabled week days

Date Arrays

The Allowed dates, Disabled dates, and Disabled week days settings expect arrays. Even for single dates, wrap in an array: ["2024-06-04"]

Allowed dates example

Behavior Settings

  • Auto apply: Automatically confirm selection without requiring a confirm button
  • Close on auto apply: Close the calendar after auto-applying selection
  • Prevent min/max navigation: Restrict calendar navigation beyond min/max dates

Week and Month Settings

  • Week start: Choose which day starts the week (Sunday through Saturday)
  • Week numbers: Display ISO or local week numbers
  • Hide offset dates: Hide days from adjacent months
  • Disable month/year select: Remove month/year navigation controls

Flows

The Flow is the order in which users will be invited to pick a date and/or time.

By default, when the user clicks on a date picker element, they see a monthly calendar which they can navigate in. Depending on your use case, this can be a bit cumbersome.

To change this UX, you can enable the Flow setting and fully control how the user will interact with the date picker.

In the example below, we configured the date picker flow so the user would be invited to choose a year and month before selecting the correct day in the calendar:

Handling Closing Manually (For flow-based selection)

When using flow-based selection, you may need to handle the closing of the Date Picker manually depending on your flow steps and whether you have Close on auto apply disabled.

To do so:

  1. Enable Flow: Turn on the Flow setting to enable step-by-step selection
  2. Create a workflow: Add a workflow using the On flow step trigger
  3. Monitor the flow step: Check when the flow reaches your desired completion step number
  4. Close the picker: Use the Close Menu component action to close the date picker

Example workflow setup:

  • If your flow has 3 steps (Month → Day → Hour), you would trigger the Close Menu action when On flow step reports step number 3

Flow-Based Selection Modes

When using flow-based selection, it's crucial that your selected Mode aligns with the steps defined in your Flow configuration.

Allowed dates example

Mode and Flow Alignment

The Mode you select must match the flow steps you configure. Misalignment will cause the flow to behave unexpectedly or break entirely.

Critical alignment examples:

  • Date Mode: Should use flows like ['month', 'calendar'] or ['calendar']
  • Time Mode: Should use flows like ['time'] or ['hours', 'minutes']
  • Datetime Mode: Should use flows like ['month', 'calendar', 'time'] or ['calendar', 'hours', 'minutes']
  • Month Mode: Should use flows like ['month'] or ['year', 'month']
  • Year Mode: Should use flows like ['year']

Common mistakes to avoid:

  • Using Time mode with ['month', 'calendar'] flow - this will break since time mode doesn't have month/calendar steps
  • Using Date mode with ['time'] flow - this will fail since date mode doesn't include time selection

Multi-Calendar Views

For range selection, display multiple calendars side-by-side:

  1. Enable Multi calendars (available for range mode)
  2. Set the number of calendars to display (2-4)
  3. Choose between linked or independent calendar navigation

Example Use Cases

Event Date Selection

  1. Set mode to Single with Date time mode
  2. Use format MMMM D, YYYY for clear display
  3. Set minimum date to today to prevent past dates

Booking System

  1. Configure Range mode with Min Max range type
  2. Set minimum 1 night, maximum 14 nights
  3. Disable unavailable dates using Disabled dates
  4. Enable multi-calendar view for better UX

Appointment Scheduling

  1. Use Datetime mode with Single selection
  2. Enable 24h mode and Enable seconds if needed
  3. Set specific timezone for consistent scheduling
  4. Use Allowed dates to only show available appointment slots

Time Tracking

  1. Set to Time mode for duration selection
  2. Enable 24h mode and Enable seconds
  3. Use range mode for start/end time selection

Best Practices

Do:

  • Use appropriate time modes for your use case (don't include time for date-only selections)
  • Set reasonable date restrictions to guide users
  • Choose formats that match user expectations in your region
  • Use flow-based selection for dates far from today

Don't:

  • Forget to handle timezone differences for global applications
  • Set conflicting date restrictions (min date after max date)

Forking

While the Date Picker offers extensive built-in customization, you may need additional functionality beyond what's available. You can fork the element to add custom features.

If you are unsure how to fork an element, learn more in the dedicated documentation.

Properties Reference

Settings

PropertyOptions/TypeDescription
Read onlybooleanPrevents user interaction with the date picker
RequiredbooleanMakes the date picker required for form validation

Selection Settings

PropertyOptions/TypeDescription
ModeSingle Range Multi datesSelection mode for the date picker
Init valuetextInitial value for single mode (ISO date string)
Init value starttextInitial start value for range mode
Init value endtextInitial end value for range mode
Init valuearrayInitial values for multi-date mode
Multi dates limitnumberMaximum number of dates selectable in multi mode
Range modeFree Auto Min MaxRange selection behavior
Partial rangebooleanAllow partial range selection
Auto range daysnumberNumber of days for auto range mode
Min range daysnumberMinimum days required for range
Max range daysnumberMaximum days allowed for range

Time Settings

PropertyOptions/TypeDescription
ModeDatetime Date Time Month YearType of date/time selection
TimezoneselectTimezone for datetime handling
24h modebooleanUse 24-hour time format
Enable secondsbooleanInclude seconds in time selection

Date Restrictions

PropertyOptions/TypeDescription
Start datetextInitial date shown in calendar
Min datetextEarliest selectable date
Max datetextLatest selectable date
Prevent min/max navigationbooleanRestrict navigation beyond min/max dates
Allowed datesarrayWhitelist of selectable dates
Disabled datesarrayBlacklist of non-selectable dates
Disabled week daysarrayDays of week to disable (0=Sunday, 1=Monday, etc.)

Display Settings

PropertyOptions/TypeDescription
LangselectLanguage for calendar display
FormatselectPredefined date format options
Custom FormattextCustom format string (when Format is "Custom")
Menu positionCenter Left RightCalendar popup position
OrientationHorizontal VerticalCalendar layout orientation
Calendar onlybooleanShow calendar without trigger button
Multi calendarsbooleanEnable multiple calendar views
Calendars numbernumberNumber of calendars to display (2-4)

Week and Month Settings

PropertyOptions/TypeDescription
Week startSunday through SaturdayFirst day of the week
Week numbersNone Local ISOWeek number display type
Hide offset datesbooleanHide days from adjacent months
Disable month/year selectbooleanRemove month/year navigation

Behavior Settings

PropertyOptions/TypeDescription
Auto applybooleanAutomatically apply selection
Close on auto applybooleanClose calendar after auto-apply

Flow Settings

PropertyOptions/TypeDescription
FlowbooleanEnable step-by-step selection
StepsarrayOrder of selection steps

Styling

The Date Picker offers extensive theming options organized into categories:

Style Properties

PropertyDescription
Font familyTypeface for all text elements
Font sizeBase font size for calendar
Time font sizeFont size for time display
Preview font sizeFont size for selected date preview
Border radiusRoundness of calendar and input borders
Cell border radiusRoundness of individual date cells
Cell sizeDimensions of date cells
Cell paddingInternal spacing of date cells
Menu min widthMinimum width of calendar popup

Color Properties

PropertyDescription
Primary ColorMain accent color for selections
Secondary ColorSecondary UI elements color
Background ColorCalendar background color
Text ColorDefault text color
Primary Text ColorText color on primary backgrounds
Hover ColorBackground color on hover
Disabled ColorColor for disabled elements
Border ColorDefault border color
Success ColorColor for valid selections
Danger ColorColor for invalid selections

Dropzones/Default Elements

  • Trigger | Dropzone: whatever elements you place here will open the Date Picker on click

  • Left Sidebar | Dropzone: allows you to place elements in the left sidebar of the Date Picker (must have Left sidebar property enabled for this dropzone to appear)

  • Right Sidebar | Dropzone: allows you to place elements in the right sidebar of the Date Picker (must have Right sidebar property enabled for this dropzone to appear)

  • Actions | Element: Allows you to control the appearance of the Select button inside the Date Picker (button will only appear when the Auto apply property is disabled)

Date Picker dropzones & elements

Component Actions

ActionDescriptionParameters
ClearClears the current selectionNone
Open MenuOpens the date picker calendarNone
Close MenuCloses the date picker calendarNone

Event Triggers

EventDescriptionPayload
On changeTriggered when the selection changes{ value: string | object | array }
On init value changeTriggered when initial value changes{ value: string | object | array }
On flow stepTriggered when moving between flow steps
(must have Flow setting enabled)
{ value: number }

Example Event Payloads

On change (Single mode)

javascript
{
  value: "2025-01-15T10:30:00.000Z"
}

On change (Range mode)

javascript
{
  value: {
    start: "2025-01-15T00:00:00.000Z",
    end: "2025-01-20T00:00:00.000Z"
  }
}

On change (Multi-date mode)

javascript
{
  value: [
    "2025-01-15T00:00:00.000Z",
    "2025-01-18T00:00:00.000Z",
    "2025-01-22T00:00:00.000Z"
  ]
}

On flow step

javascript
{
  value: 2  // Current step number in the flow
}

Exposed Variables

The date picker exposes the following variable for use in your application:

VariableTypeDescription
valuestring | object | arraySelected date(s) based on selection mode

Example Variable Values

Single mode

javascript
"2025-01-15T10:30:00.000Z"

Range mode

javascript
{
  "start": "2025-01-15T00:00:00.000Z",
  "end": "2025-01-20T00:00:00.000Z"
}

Multi-date mode

javascript
[
  "2025-01-15T00:00:00.000Z",
  "2025-01-18T00:00:00.000Z",
  "2025-01-22T00:00:00.000Z"
]
